How to import a plan?

Modified on Sat, 29 Jun 2024 at 03:25 PM

Importing a plan allows you to add a plan image to use its 2D dimensions to ensure consistent measurements in the project.


Here are the steps to import a plan:

  1. Open or create a project

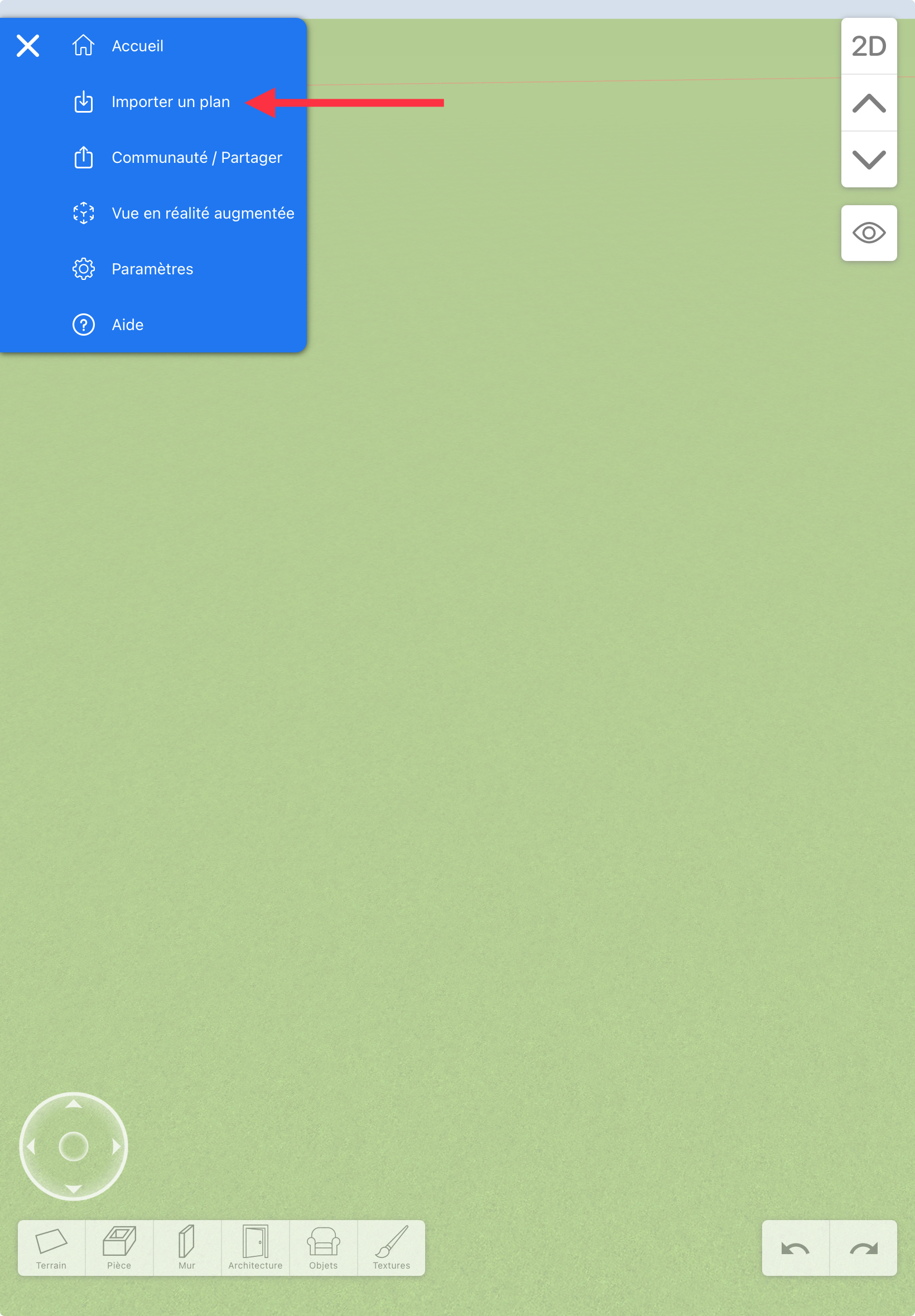

  2. Open the menu at the top left on iOS or on the right on other devices
  3. Select “import plan”
  4. Select the plan in image format and validate
  5. Adjust the cursor so that it corresponds to the desired scale, the distance between the cursors will correspond to 1 meter by default, you can modify the value at the top in the “distance” section.

Please note, you can only import image files (jpeg for example), the PDF format is not recognized.


It's also possible to adjust the plan's opacity by selecting it and using the 'Opacity' tool."


the tutorial:

https://www.youtube.com/watch?v=w6L0TKL8u6E
